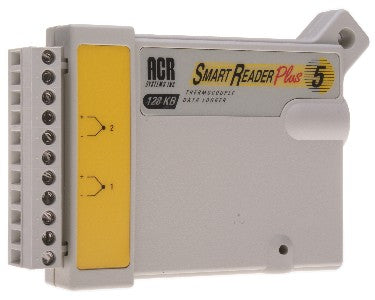

Description
Ideal for those applications that require monitoring extremely high temperatures or monitoring temperature over a wide range.
Typical applications include:
- Monitor performance of gas-fired heating equipment
- Verify concrete curing
- Process verification
Key Features:
- Equipped with one internal ambient temperature channel
- Two external channels able to accept a variety of thermocouple temperature sensors (Max length up to 100 meters (300 feet)
- Network up to 10 various SRP data loggers
- Can be calibrated to NIST standards
Specifications
| Accessories | ACR Thermocouple Wire or any J, K, S, T and E type thermocouples |
| Accuracy | +/- 0.5% of range + resolution |
| Thermocouple Specs | Range and Resolution: J type: -50 to 600ºC (-55 to 1100ºF); 0.30ºC (0.55ºF) K type:-100 to 1150ºC (-145 to 2100ºF); 0.50ºC (0.90ºF) S type: 0 to 1450ºC (32 to 2642ºF ); 1.0ºC (1.8ºF) T type:-200 to 400ºC (-325 to 750ºF); 0.40ºC (0.75ºF) E type: -50 to 680ºC (-58 to 1250ºF); 0.24ºC (0.44ºF) |
| Warranty | 3 – years |
Accessories
Software & Interface Cable are required for full functionality of the product.
J Type Thermocouple Wire K Type Thermocouple Wire T Type Thermocouple Wire Weatherproof Box
Software
ACR softwares are powerful, easy and intuitive that opens a window into the analysis of your data collected. Data can be viewed in various formats and presentation quality graphs can be exported into any WORD program. The software provides electronic records for a reduced paper trail.
TrendReader Full License TrendReader Interface Pkg TrendReader on USB Full
Documentation
For a product sheet, please click below for a pdf version.
A link to the Manual is available by clicking on the link below.
Q&A
Click here to visit our NEW Q&A pages.Calibration
Data loggers are often used in highly regulated environments such as food and pharmaceutical production and storage where strict safety regulations apply. Regulatory agencies generally require proof of calibration.
ACR calibrations are performed using reference standards that have been calibrated and are traceable to the US National Institute of Standards & Technology (NIST). This ensures that all ACR data loggers meet, and perform to, their published specifications, allowing you to be confident that they will assist you in achieving your compliance requirements.
Calibration certificates are provided with every calibration we perform. ACR Systems is an ISO 9001:2015 registered company and calibration records are kept as part of our quality system and can be made available for customer audits.
