Description

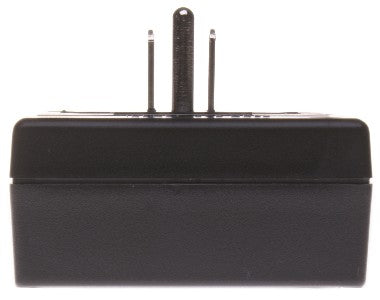

Plugs into any power receptacle to record basic voltage disturbance events.
Typical applications include:
- Traffic signal monitoring at Intersections
- IT Server Rooms
- Home Automation systems
- Sensitive electrical equipment power source quality
Key Features:
- 120 volt for North American receptacles
- EventReader software provides easy to understand graphs

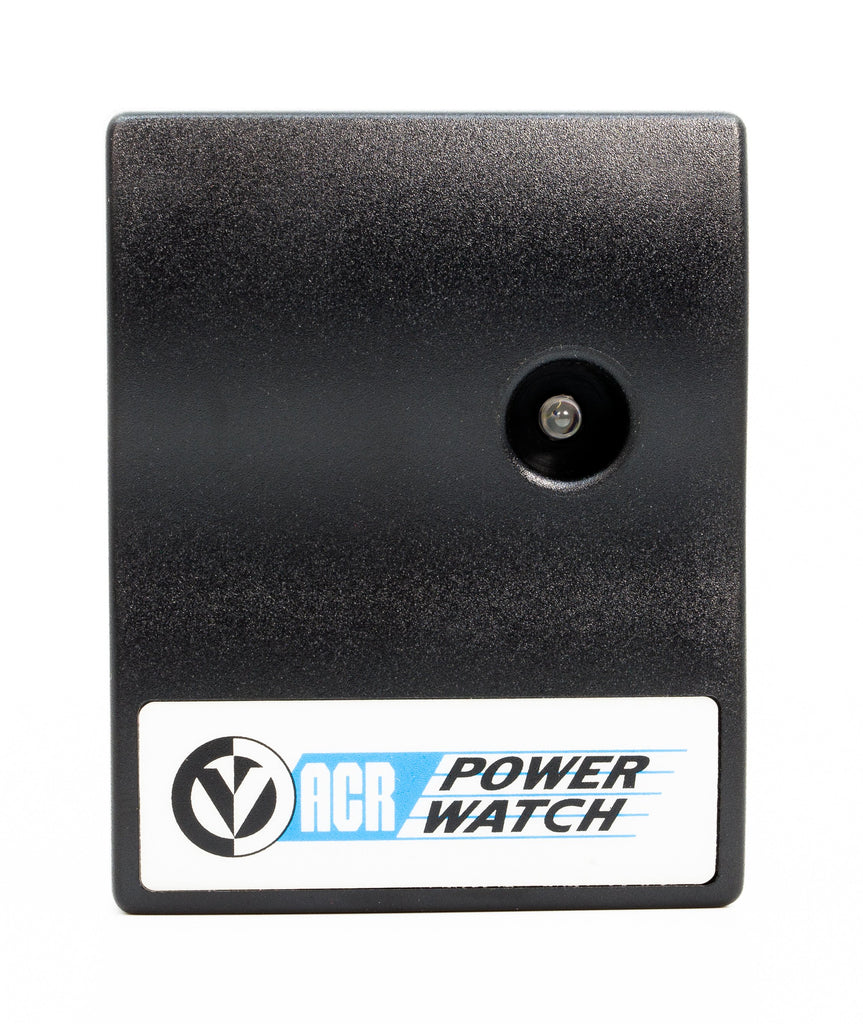

- LED flashing light when an event is recorded.
- Affordable enough to deploy several loggers around your building to monitor several branches.
- Conduct high-level diagnosis of your building’s power quality without hiring an electrician.
Specifications
| Frequency | Range: Hot to Neutral: 45 to 65 Hz Accuracy: Hot to Neutral:+/- 0.1 Hz (3 cycles minimum) Resolution: Hot to Neutral: 0.1 Hz |
| Impulse | Range: Hot to Neutral: 100 to 2500 V peak Neutral to Ground: 50 to 2500 V peak Accuracy: Hot to Neutral: +/- 10% of reading + resolution Neutral to Ground: +/- 10% of reading + resolution Resolution: Hot to Neutral: 10 V Neutral to Ground: 10 V Width Detection: Hot to Neutral: 1 µsec minimum Neutral to Ground: 1 µsec minimum Phase Angle Accuracy: Hot to Neutral: +/- 1° (20 to 180°, 200 to 360°) Neutral to Ground: +/- 1° (20 to 180°, 200 to 360°) Phase Angle Resolution: Hot to Neutral: 1° Neutral to Ground: 1° |
| Surge, Sag & Outage | Range: Hot to Neutral: 0 to 200 V rms Neutral to Ground: 3 to 150 V rms Accuracy: Hot to Neutral: +/- 1 V rms + resolution Neutral to Ground: +/- 1 V rms + resolution Resolution: Hot to Neutral: 1 V rms Neutral to Ground: +/- 1 V rms |
| Time Events (< 1 sec) | Accuracy: Hot to Neutral: +/- 0.5 cycle Neutral to Ground: +/- 1 cycle Resolution: Hot to Neutral: 0.5 cycle Neutral to Ground:1 cycle |
| Time Stamp (> 1 sec) | Accuracy: Hot to Neutral: +/- 2 seconds/day + resolution Resolution: Hot to Neutral: 8 seconds Warranty: Hot to Neutral: 3 years |
Software
ACR software tools are intuitive and flexible, allowing you to easily configure ACR data loggers to collect the data you need. Once downloaded, your data is displayed in presentation-quality graphs and can be converted into popular formats for use with spreadsheet programs, document editors, and other third-party applications.
Documentation
For a product sheet, please click below for a pdf version.
A link to the Manual is available by clicking on the link below.
Q&A
Click here to visit our NEW Q&A pages.Calibration
Data loggers are often used in highly regulated environments such as food and pharmaceutical production and storage where strict safety regulations apply. Regulatory agencies generally require proof of calibration.
ACR calibrations are performed using reference standards that have been calibrated and are traceable to the US National Institute of Standards & Technology (NIST). This ensures that all ACR data loggers meet, and perform to, their published specifications, allowing you to be confident that they will assist you in achieving your compliance requirements.
Calibration certificates are provided with every calibration we perform. ACR Systems is an ISO 9001:2015 registered company and calibration records are kept as part of our quality system and can be made available for customer audits.
