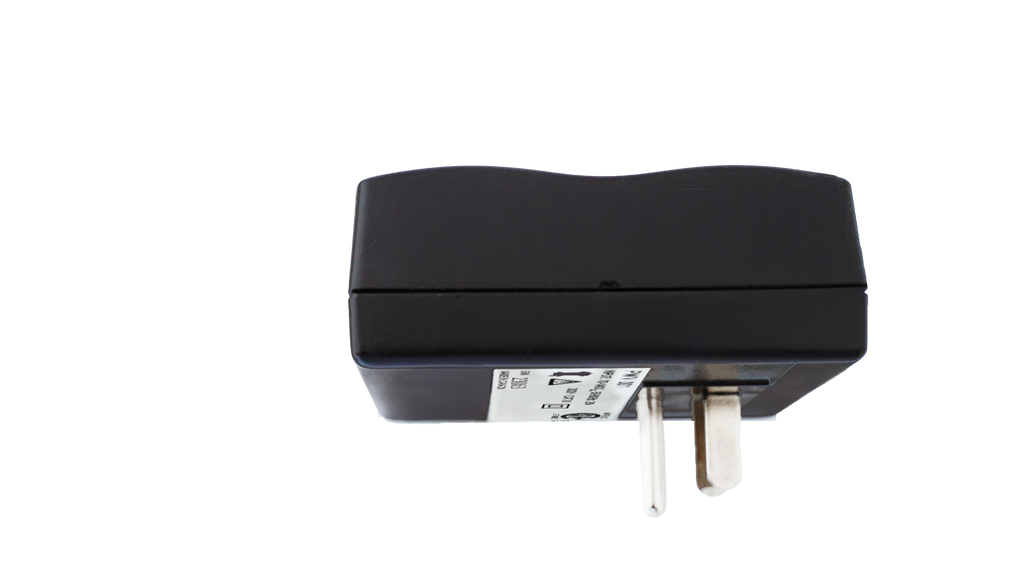

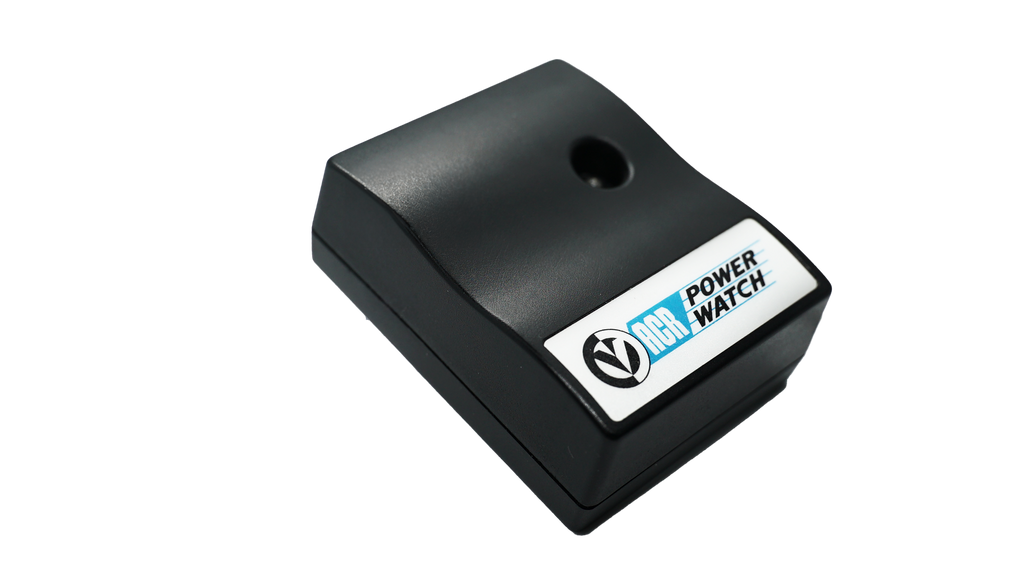

PowerWatch - 220V
Plugs into any power receptacle to record basic voltage disturbance events.
SKU: 01-0205
$739.00 USD
Request Quote

Guaranteed safe checkout

american expressdiners clubdiscovermasterpaypalvisa
Description Specifications Software Documentation Q&A

Description

Plugs into any power receptacle to record basic voltage disturbance events.

Typical applications include:

  • Traffic signal monitoring at Intersections
  • IT Server Rooms
  • Home Automation systems
  • Sensitive electrical equipment power source quality

Key Features:

  • 220 volt for Australia, United Kingdom & European Shuko receptacles
  • EventReader software provides easy to understand graphs
  • LED flashing light when an event is recorded.
  • Affordable enough to deploy several loggers around your building to monitor several branches.
  • Conduct high-level diagnosis of your building’s power quality without hiring an electrician.

Specifications

Frequency Range:
Hot to Neutral:45 to 65 Hz

Accuracy:
Hot to Neutral: +/- 0.1 Hz (3 cycles minimum)
Impulse Range:
Hot to Neutral: 100 to 2500 V peak
Neutral to Ground: 50 to 2500 V peak

Accuracy:
Hot to Neutral: +/- 10% of reading + resolution
Neutral to Ground: +/- 10% of reading + resolution

Resolution:
Hot to Neutral: 10 V
Neutral to Ground: 10 V

Width Detection:
Hot to Neutral: 1 µsec minimum
Neutral to Ground: 1 µsec minimum

Phase Angle Accuracy:
Hot to Neutral: +/- 1° (20 to 180°, 200 to 360°)
Neutral to Ground: +/- 1° (20 to 180°, 200 to 360°)

Phase Angle Resolution:
Hot to Neutral: 1°
Neutral to Ground:1°
Surge, Sag & Outage Accuracy:
Hot to Neutral: +/- 1 V rms + resolution
Neutral to Ground: +/- 1 V rms + resolution

Range:
Hot to Neutral: 0 to 200 V rms
Neutral to Ground: 3 to 200 V rms

Resolution:
Hot to Neutral: 1 V rms
Neutral to Ground: +/- 1 V rms
Time Stamp (< 1 sec) Accuracy:
Hot to Neutral: +/- 2 seconds/day + resolution

Resolution:
Hot to Neutral: 8 seconds

Warranty:
Hot to Neutral: 3 – years
Time Stamp (> 1 sec) Accuracy:
Hot to Neutral: +/- 0.5 cycle
Neutral to Ground: +/- 1 cycle

Resolution:
Hot to Neutral: 8 seconds
Neutral to Ground: 1 cycle

Software

ACR software tools are intuitive and flexible, allowing you to easily configure ACR data loggers to collect the data you need. Once downloaded, your data is displayed in presentation-quality graphs and can be converted into popular formats for use with spreadsheet programs, document editors, and other third-party applications.

EventReader Software PowerWatch Interface Pkg

Documentation

For a product sheet, please click below for a pdf version.

Product Sheet

A link to the Manual is available by clicking on the link below.

EventReader Manual

Q&A

Click here to visit our NEW Q&A pages.

Calibration

Data loggers are often used in highly regulated environments such as food and pharmaceutical production and storage where strict safety regulations apply. Regulatory agencies generally require proof of calibration.

ACR calibrations are performed using reference standards that have been calibrated and are traceable to the US National Institute of Standards & Technology (NIST). This ensures that all ACR data loggers meet, and perform to, their published specifications, allowing you to be confident that they will assist you in achieving your compliance requirements.

Calibration certificates are provided with every calibration we perform. ACR Systems is an ISO 9001:2015 registered company and calibration records are kept as part of our quality system and can be made available for customer audits.

Calibration Service
